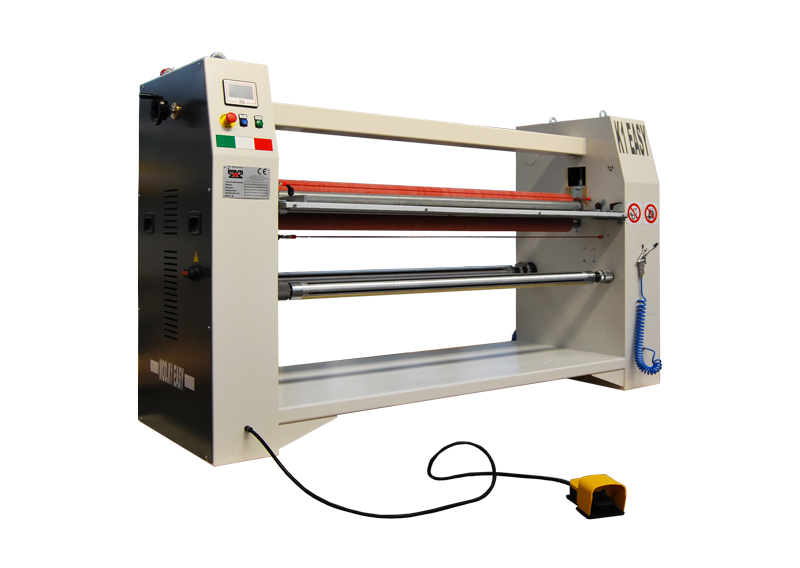

Imesa K1 EASY
MOD K1 EASY
If you are looking for a small capacity low quantity and straight forward laminating system then the K1 Easy model could be a perfect solution.
Suitable for lighter weight materials it combines simplicity and productivity, representing a reliable entry level calander.
The Imesa K1 Easy can be supplied with an equally straight forward independent roll gantry to facilitate material unwinding.
Visit our Contact Us page now for more information.
Technical Data
- Adjustable speed up to 5 m/min, controlled by inverter
- Available for material widths up to 1600 mm
- Upper calender roll heatable to 60° C
- Device to check for material “curling effect”
- Mechanical adjustment of the gap between rollers
- Mechanical brake for adjustment of transfer film roll tension
- Adhesive roll holder Ø max 300 mm, complete with air expanding shaft, quick lock/release system device and mechanical brake
- Tension controlled winder, complete with air expanding shaft Ø 75 mm and quick lock/release device
- External roll holder for the material to be laminated, with mechanical brake (optional)
