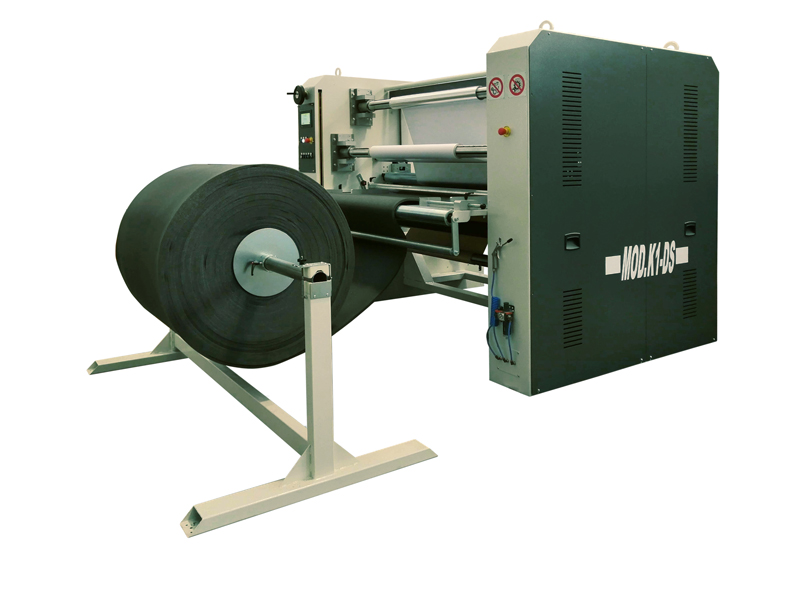

K External Easy Roll Holder
K1 DS Liner Remover
K1 DS CE 3
K1 DS CE
K1 DS CE
K1 DS 2
K1 DS 1
K1 DS C3
K1 DS C2
K1 DS C
Roller
K1 DS
K1 DS

MOD K1 S and DS

Coating flexible or foam materials with Transfer adhesives and PSA is possible with our calandering machines K1 type:

  • Imesa MOD K1-S for single side lamination;
  • Imesa MOD K1-DS for double side lamination.

Both are equipped with a single calandering unit, with an adjustable heating system.
It is possible to rewind the process liner separately, through liner remover shafts, to rewind the laminated material with the liner on the outside only.
If necessary, our laminating machines can be completed with an external unwinder, a transversal or longitudinal cutting system (such as a razor blades section with manual positioning).

Possible working modes: Roll-to-Roll, Sheet-to-Roll, or Sheet-to-Sheet mode.

Download PDF

MOD K1 S
MOD K1 S

TECHNICAL DATA

  • Electronically adjustable speed max 20 m/min
  • Available for material widths from 1600 mm to 2100 mm
  • Input table
  • Device to check for material “curling effect”
  • Calender rollers heatable up to 90 ° C
  • Mechanical adjustment of the gap between rollers
  • Roll holder for film transfer with electro-magnetic brakes
  • Winder with electronic clutch, complete with quick release supports, Ø 75mm air-expanding shaft
  • Roll holder for adhesive film Ø max 500 mm featuring air-expanding shaft and quick lock/release devices and electro-magnetic brake
  • Output table (optional)
  • Winder for siliconised paper (optional)
MOD K1 DS
