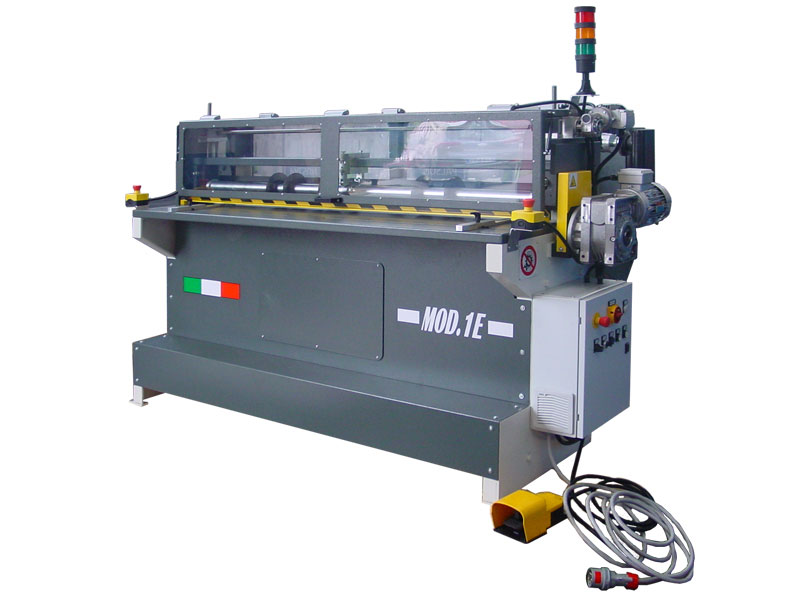

MOD 1

This machine features high performance mechanical characteristics and can be employed in all fields requiring the cutting of strips of materials in sheets, plates and rolls, such as leather, rubber and foam.
Solidly built and designed for extreme reliability, this machine is an indispensable equipment for any factory cutting department, and is especially useful in the conveyor belts and rubber sector in general.

The Mod.1 is produced in 2 main versions:

With a cutting system using a blade and counter-blade, well suited for leather, fibre cartons, Texon, asbestos-free materials, etc.

With a cutting system using a Ø 160x70x2 mm circular blade on a nylon roller, well suited for rubber, microporous materials, foam materials. The maximum cutting thickness is 38 mm (depending on the type of material).

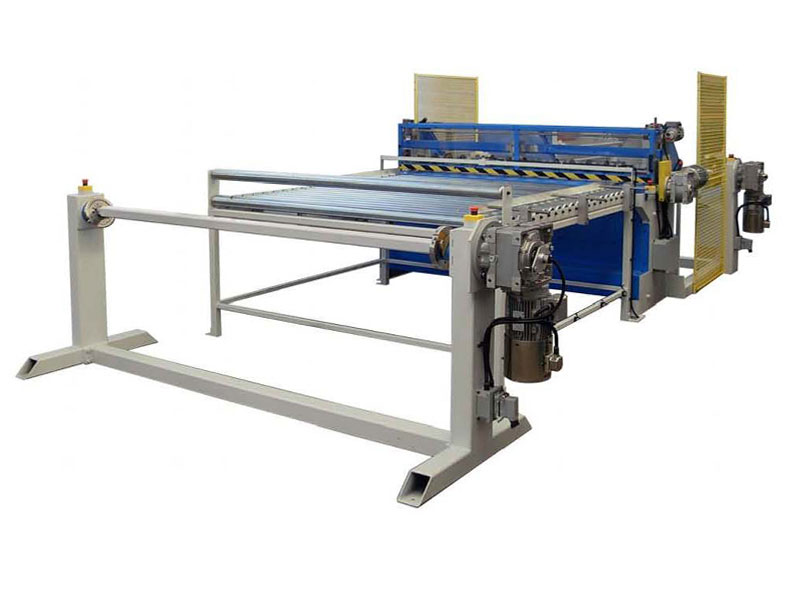

The Mod.1 can also be fitted with an adjustable electronic speed device which, as required, can be accessorized with winder units for collecting the cut strips of material.
Available working width from 800 to 2200 mm depending on the versions.
