MOD K2

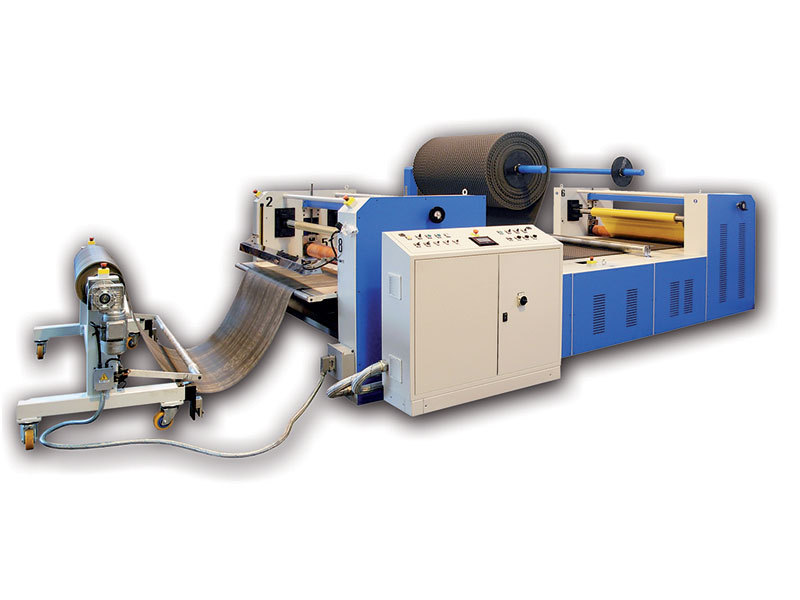

Imesa MOD K2 multi-layer laminating machine, is a cutting-edge model from the Imesa K Series calanders, useful to simplify complexed converting process.
Thanks to a multiple laminating station, it allows one-step multilayer lamination, liner replacement, combined cutting, trimming or rewinding into rolls.
Imesa machine MOD K2 is available with standard heating system (with I.R. lamp, adjustable to 80°C-90°C/27°F-32°F) or with diathermic oil heating system (with thermal hot oil heaters, up to 220°C/104°F) to facilitate the glue application during the materials converting process.
This multi-layer calander can laminate flexible materials, in general on one side or both with transfer, PSA or thermo-adhesives.

MOD K2 is a customizable multi layers laminator so it can be a configured with liner removers, unwinders and winders, internal or external, for any kind of processing.

Imesa Mod. K2 can be equipped for example by the following systems:

• slit shear with longitudinal razor or crush cutting system;
• Flying cut or cross cutting system with motorised transversal blade;
• Scraps removal systems;
• Automatic material output system;
• Winders featuring independent clutch system.

Possible multilayer laminations working modes: Roll-to-Roll, Roll-to-Sheet, Sheet-to-Sheet, Sheet-to-Roll.
